This car phone holder is made for the Apple iPhone X, and suits phones 75 to 89mm wide and 2 to 10mm thick. Measure the width and thickness with the case on before ordering.
It is a non-charging holder, so there is nothing to wire in. A tilt swivel turns the screen from portrait to landscape and angles it away from glare.
It is the holder on its own. It screws onto a ClicOn dash mount with the screws provided, so pick the mount made for your vehicle to complete the set-up. When you change phones later, you only need a new holder; the mount stays in the car.

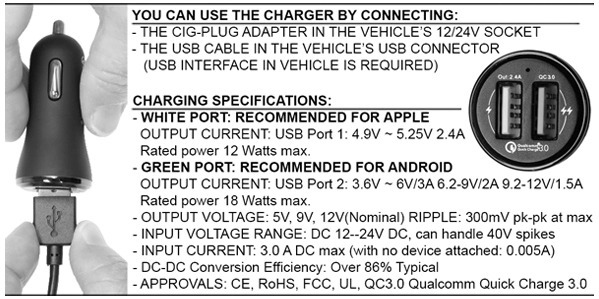

Please note: If your car has a USB socket, you can disconnect the cigarette plug from the cable and connect directly to the USB connector in your vehicle to Sync audio files from your device into your head unit. The car stereo must support this feature. Test that your stereo is compatible by connecting your device to the stereo with the USB/charging cable that comes with your device.
| This Holder Fits | iPhone X / XR / Xs / Xs Max / 11 / 11 Pro |
| SKU | 521667 |
| Barcode # | 7320285216679 |
| Brand | ClicOn |
| Shipping Weight | 0.1870kg |
Below you will find the installation instructions for the USB Cig-plug Charging Adjustable Holder (SKU:521667), you can click on the images to open a larger version in a new tab

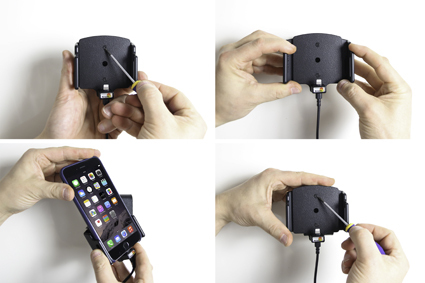

1. To adjust the holder for your device: Loosen the screws on the holder's front side, so the holder's sides can be adjusted. Place the device in the holder and press the sides together, so the device is firmly in place. Tighten the screws on the front side of the holder.

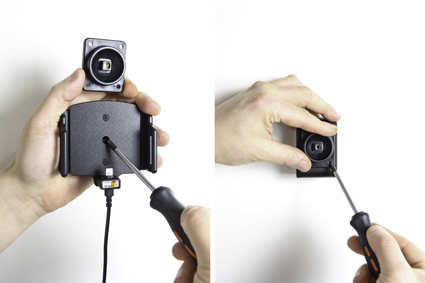

2. Loosen the screw in the centre of the holder to remove the tilt swivel attaching plate on the back. Place the attaching plate in the desired position. Screw the attaching plate into place with the enclosed screws.
3. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firmly first, then loosen it a bit, so the holder is firmly in place but still can be adjusted.
4. The holder is in place.
Car phone holder for the Apple iPhone X. Fits 75-89mm wide, 2-10mm thick. Non-charging. 360-degree tilt swivel. AMPS pattern holes. Mount sold separately.
