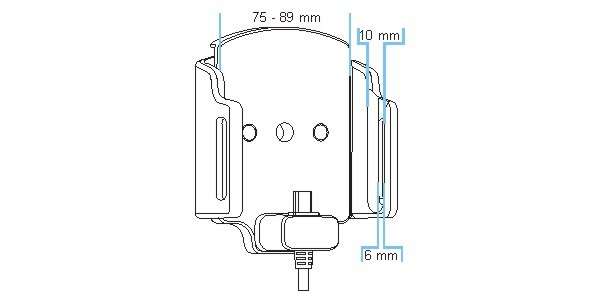

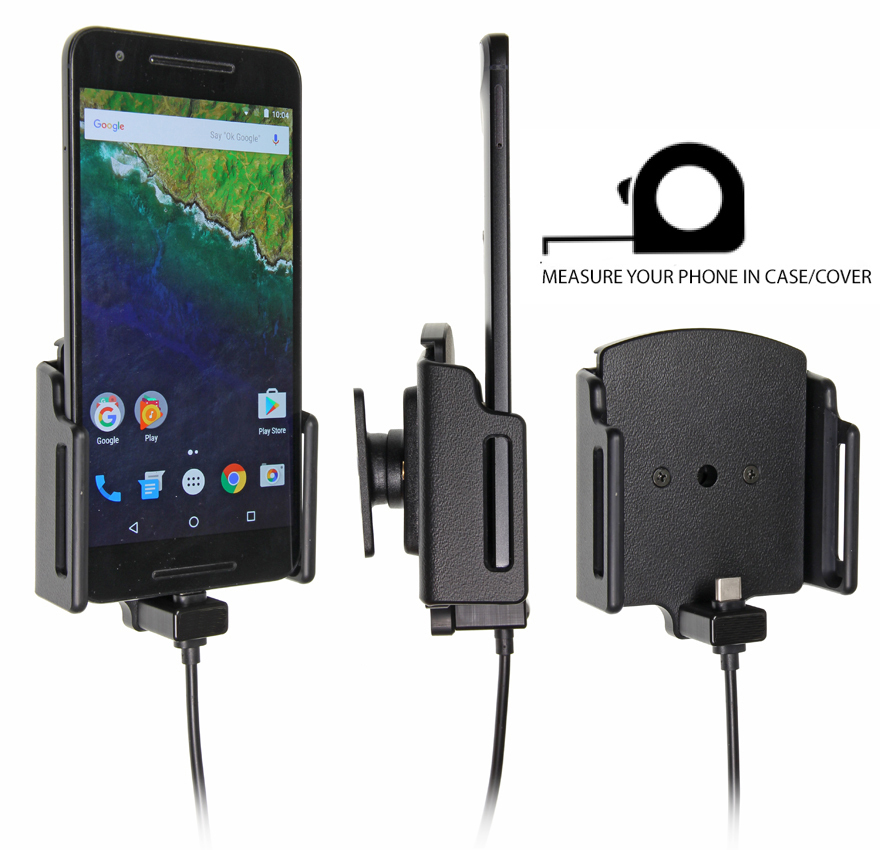

This adjustable charging holder is for phones that charge by USB Type-C and are used in a case. It fits devices 75 to 89mm wide and 6 to 10mm thick, which suits many Samsung Galaxy A, Note and S series phones. Measure the width and thickness of your phone with the case on before ordering.

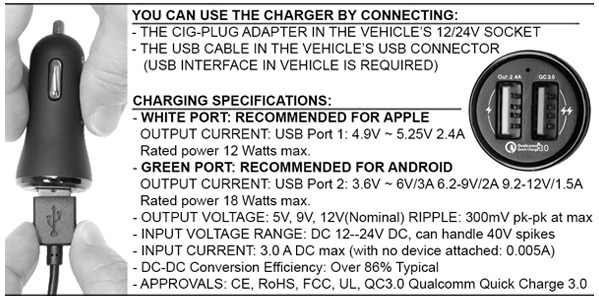

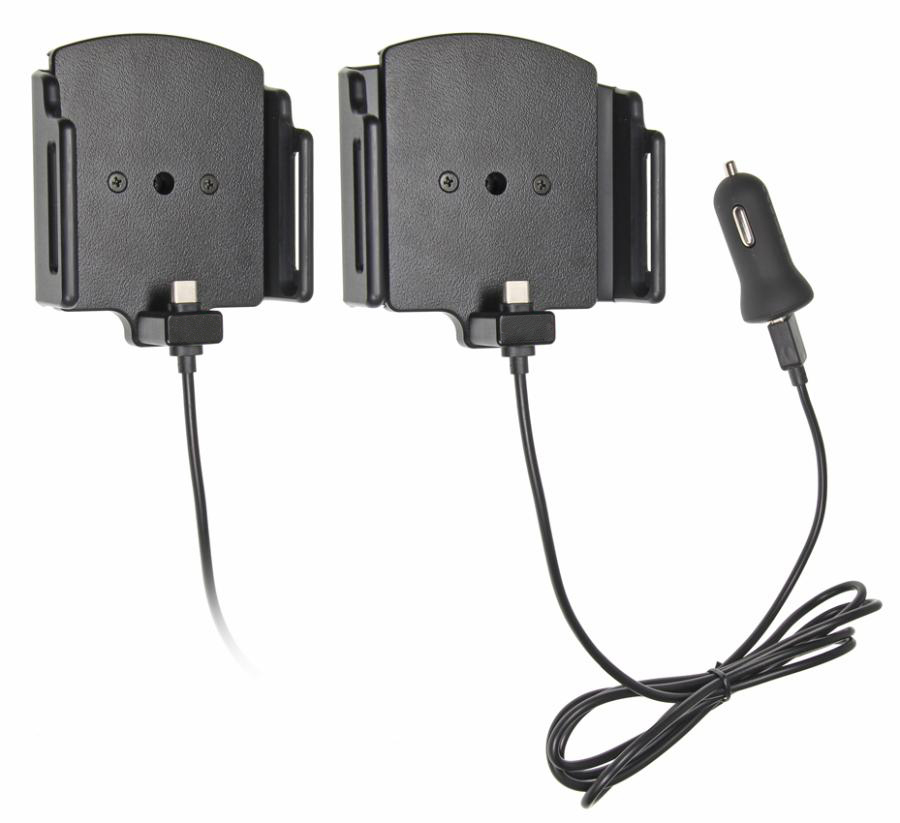

It comes with its own dual USB-A cig-plug charger that supports Qualcomm QC 3.0A quick charge, with a second port for charging another device. A tilt swivel lets you turn the phone from portrait to landscape and angle the screen to avoid glare.
It is the holder on its own. It screws onto a ClicOn dash mount with the screws provided, so pick the mount made for your vehicle to complete the set-up.
Please note: if your car has a USB socket, you can disconnect the cigarette plug from the cable and connect directly to the USB connector in your vehicle to sync audio files from your device into your head unit. The car stereo must support this feature. Test that your stereo is compatible by connecting your device to the stereo with the USB or charging cable that comes with your device.
| This Holder Fits | Width 75-89 mm, Slot 6 -10mmSamsung: A / Note / S Series |
| SKU | 521843 |
| Barcode # | 7320285218437 |
| Brand | ClicOn |
| Shipping Weight | 0.1800kg |
Below you will find the installation instructions for the USB Cig-plug Charging Adjustable Holder (SKU:521843), you can click on the images to open a larger version in a new tab

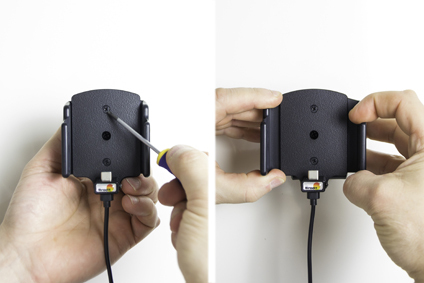

1. To adjust the holder for your device: Loosen the screws on the holder's front side, so the holder's sides can be adjusted.

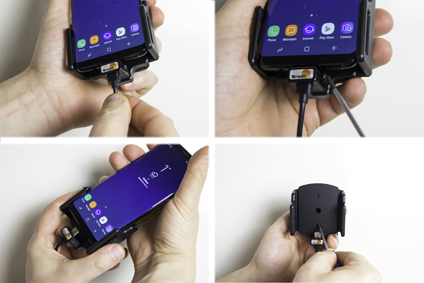

2. Place the device in the holder and press the sides together, so the device is firmly in place. Adjust the positioning of the charging connector, so it connects properly to the phone. Lock the charging connector into position by screwing the screw into the hole on the side of the charging connector block. Remove the device carefully. Tighten the screws on the front side of the holder.

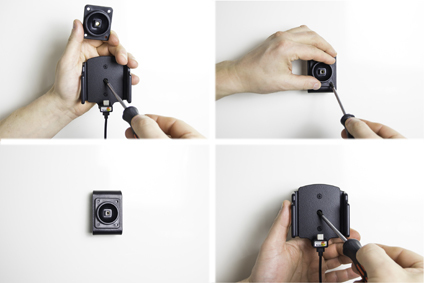

3. To install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place but still can be adjusted.

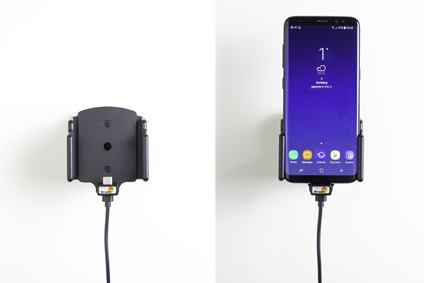

4. The holder is in place.
One Year Warranty applies to products purchased directly from HoldMyPhone or an authorised re-seller.
During this warranty period if the product is defective in workmanship or materials HoldMyPhone will replace it with a model of equal value.
Damages caused by improper use, accident, unauthorized repair or modifications are not covered under this warranty.
Adjustable USB Type-C charging car holder for phones 75-89mm wide and 6-10mm thick, used with a case. Suits many Samsung Galaxy A, Note and S series phones. Dual USB-A cig-plug charger (QC 3.0A + 2.4A), tilt swivel. Mount sold separately.
