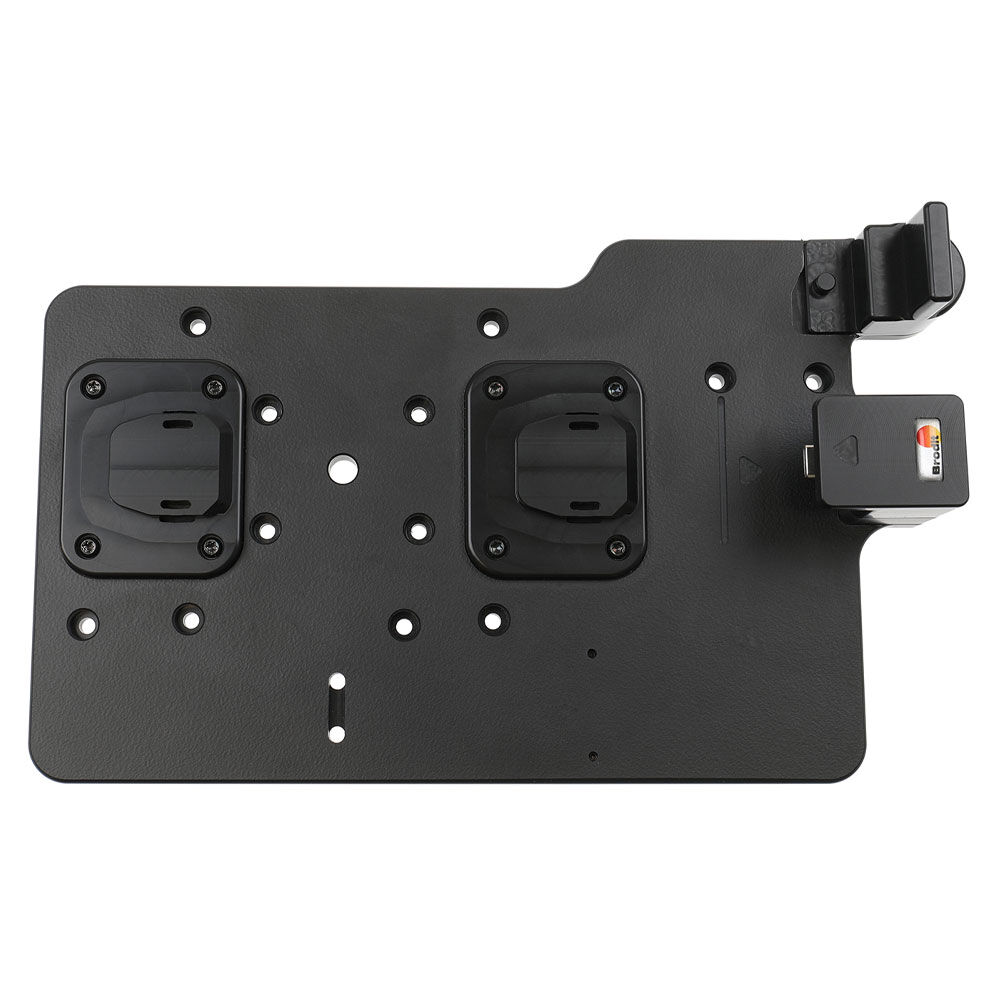

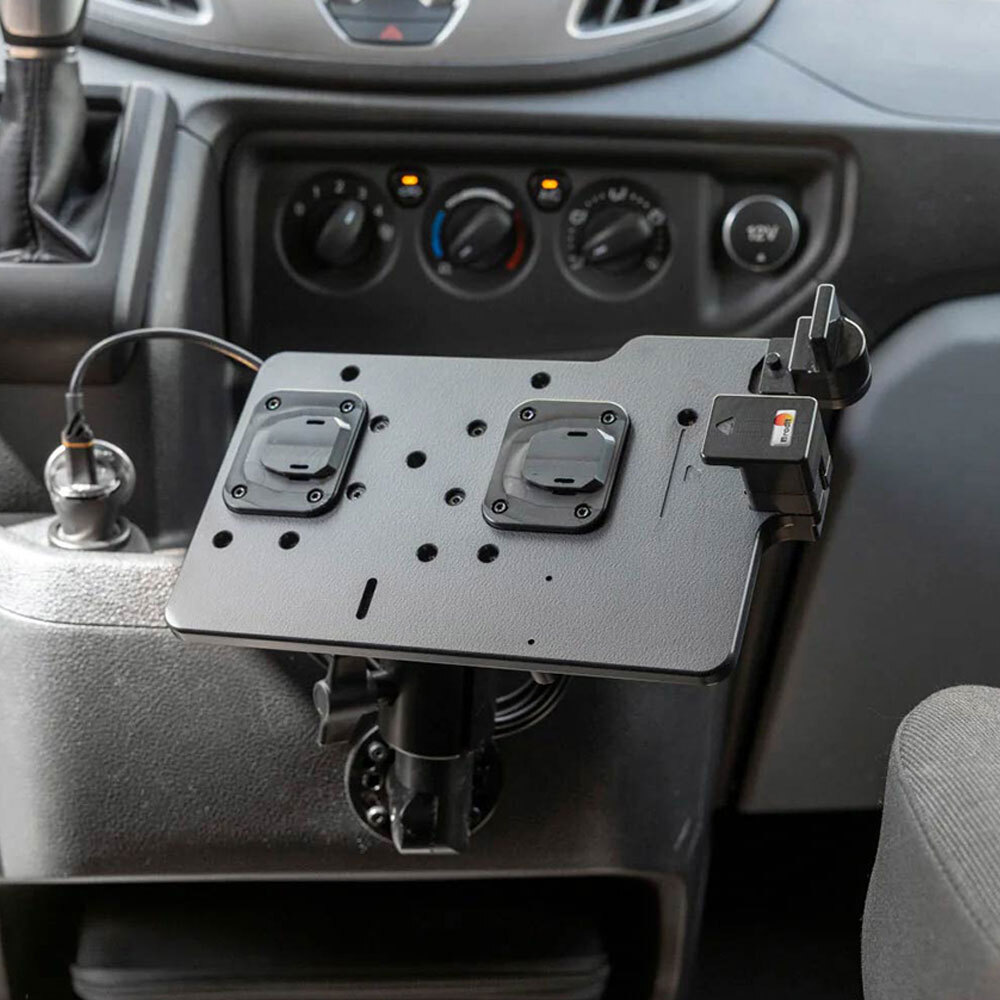

ModTek Charging Dock for Android and Windows Devices
Compatible with ModTek Hard Cases
ModTek Charging Dock for Android and Windows Devices, compatible with ModTek Hard Cases.
ModTek is a modular tablet docking system: a hard case stays on the tablet, a dock sits on the mount and you choose the power supply, with lock modules as an option. The tablet docks and undocks in seconds and charges while it is in the dock.
Compatibility
- The ModTek Dock is compatible with Android and Window ModTek Hard Cases.

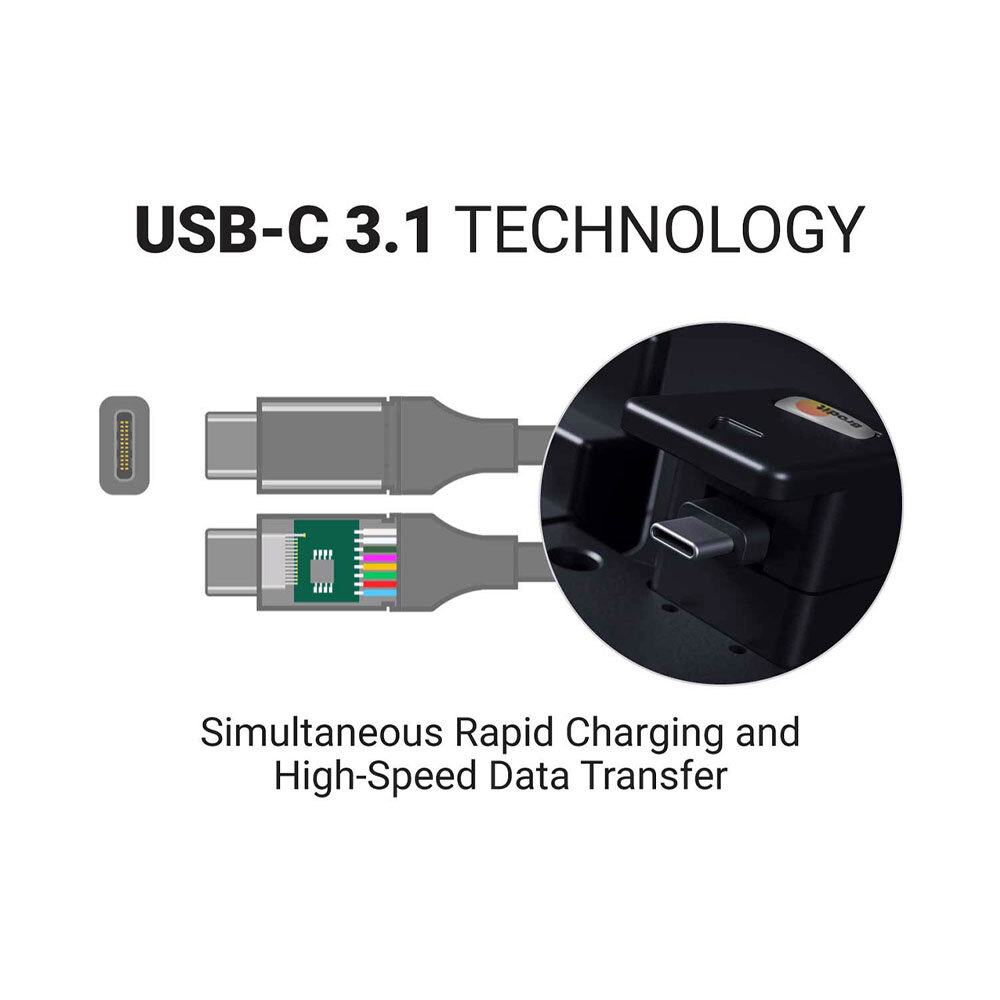

USB-C benefits
- Industry standard for mobile devices.
- Superior protection against dust, dirt, moisture, and bending compared to pogo pins.
- Enhanced data capabilities with connections up to 5Gbps.
- Backward compatibility with USB 2.0 devices.
- Simultaneous charging of the iPad.
Power support
- Supports direct power.

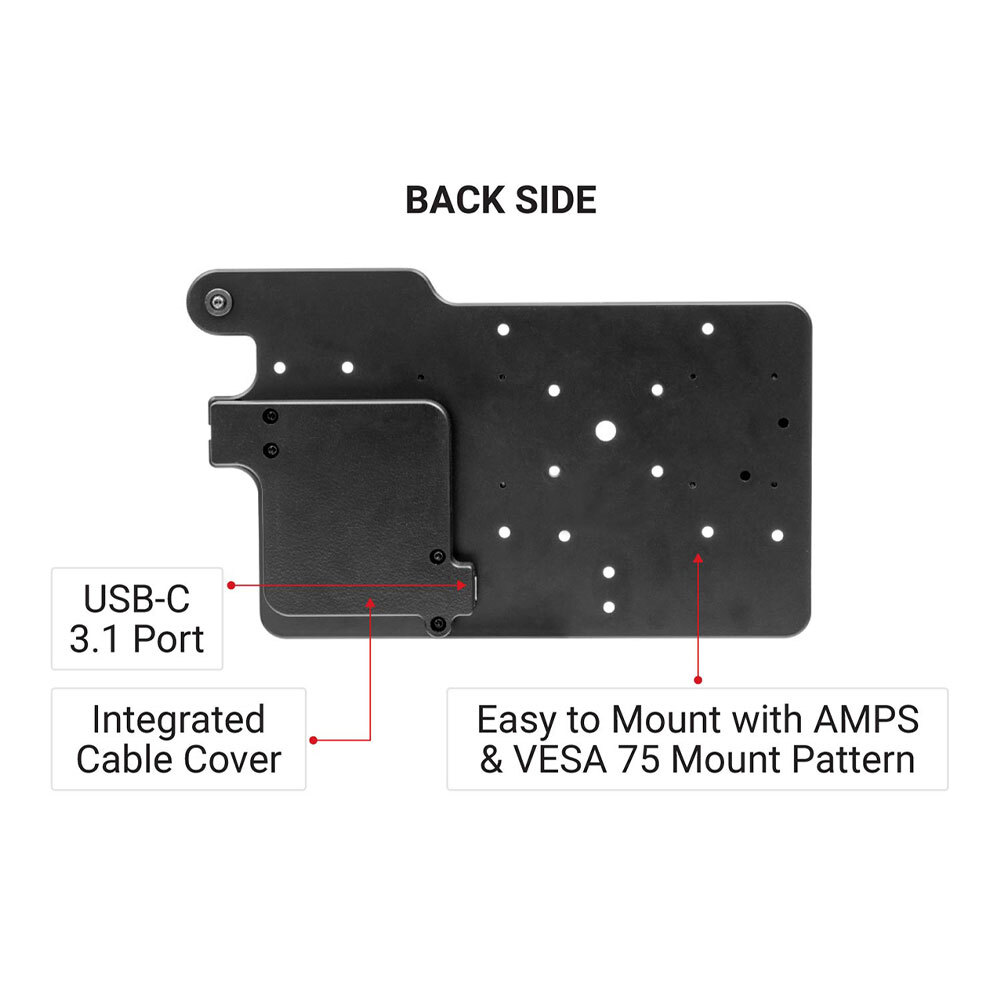

- Supports power via USB-C port on the dock's back.
Expansion options
- Optional hubs or splitters can be connected for external device connections.
Design features

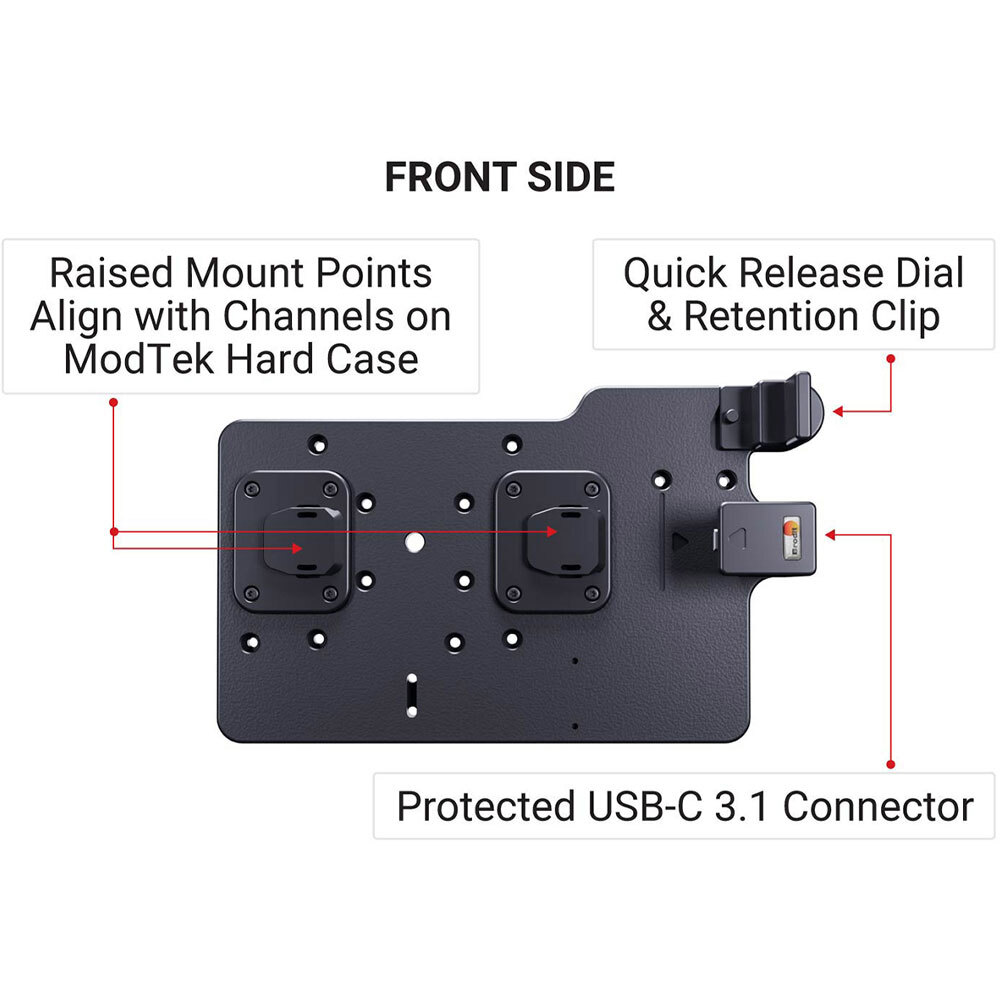

- Raised mounting points for stability.

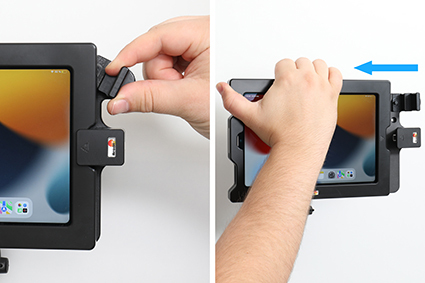

- Quick-release dial for easy one-handed docking and undocking.
Durability and protection
- Military-standard testing for thermal shock and forklift vibration (16Gmrs).
- USB-C insertion tested (20K times).
Complete ModTek solution
- Includes ModTek Dock, Hard Case, and choice of Power Supply.
- Available accessories: Lock Module and USB Hub.
Fits
- Compatible with all Apple iPad ModTek Hard Cases.
- Android & Window Devices
- USB-C Benifits
- Power Support
- Expansion Options
- Durabilty & Protection
| This Fits | Compatible with all Apple iPad ModTek Hard Cases |
| SKU | 216410 |
| Barcode # | 7320282164102 |
| Brand | Brodit |

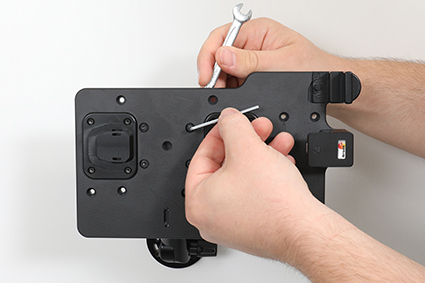

Below you will find the installation instructions for the ModTek Charging Dock for Android and Windows Devices (SKU:216410), you can click on the images to open a larger version in a new tab
Step 3

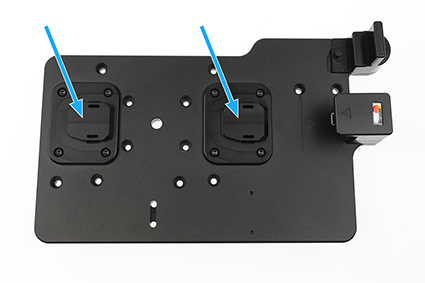

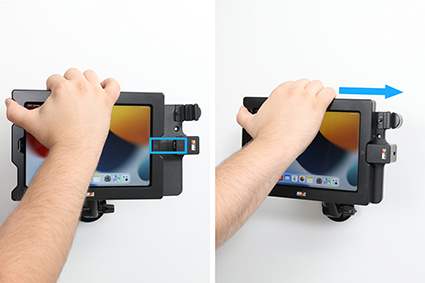

3. Docking a Hard Case: The Hard Case and the Dock include alignment indicators to show where they should line up. Place the Hard Case onto the dock so both mount points are engaged before attempting to slide the case onto the USB-C connector. NOTE: If only one mount point is engaged the angle will be off when connecting to the USB-C connector and you can damage it permanently. Once the Hard Case is aligned by engaging both mount points, smoothly slide the tablet onto the USB-C connector until you hear an audible click. If you feel significant resistance the case is not properly aligned. Remove it and ensure alignment on both mount points before continuing.
ModTek Charging Dock for Android and Windows Devices. Compatible with ModTek Hard Cases. Part of the ModTek modular tablet docking system.
