Mazda CX-30 Centre Mount & Adjustable Non Charging Holder Kit for Mazda 3 Yrs:19-27
For Phone Width 75-89 mm Depth 6-10 mm.

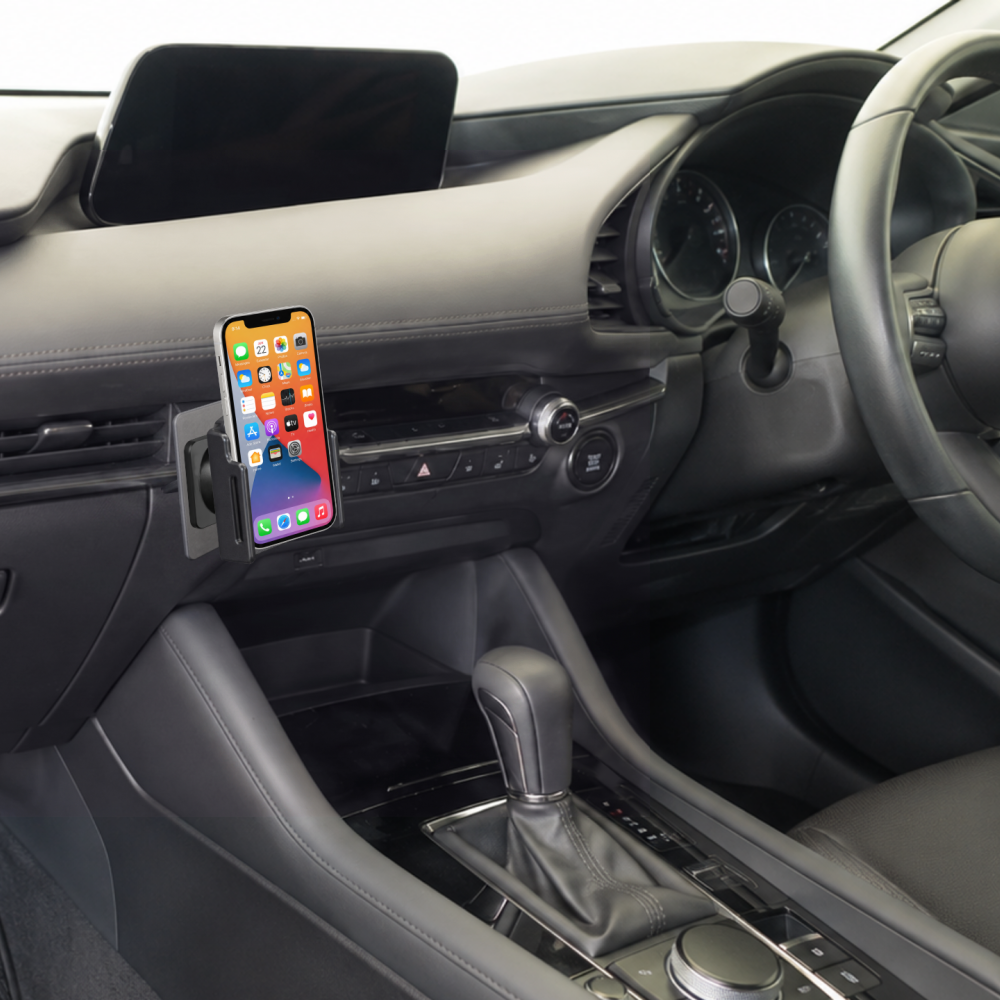

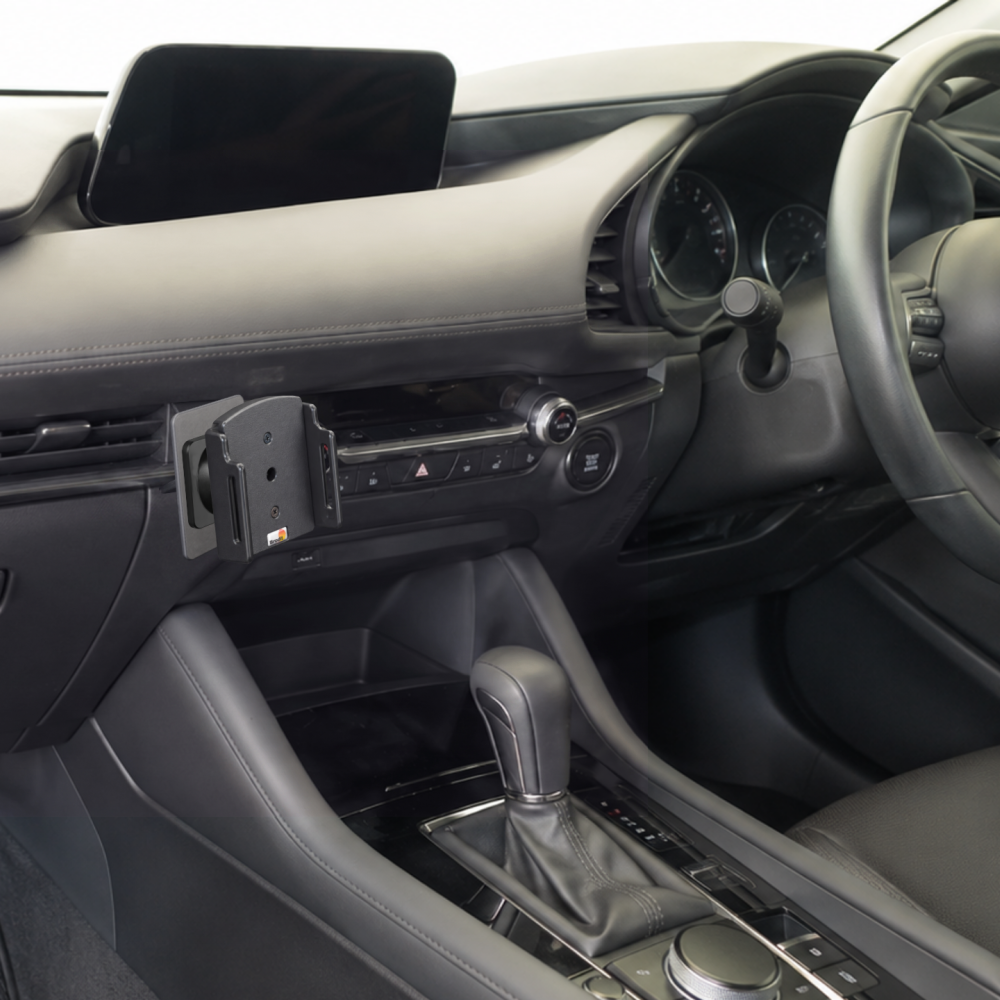

This kit gives you everything you need to mount your phone in your Mazda, in one box. The centre dash mount is custom made for the Mazda 3 (2019 to 2027) and CX-30 (2020 to 2027), which share the same dashboard, so one kit fits them all. The adjustable holder takes phones 75 to 89mm wide and 6 to 10mm thick, measured with the case on.
The two parts are made to work together. The mount fits your dashboard, so it is solid and does not vibrate or pop off. The holder adjusts to grip your phone firmly in its case, and because it is a non-charging holder there is nothing to wire in. If you change phones later, you only need to swap the holder.
What's included

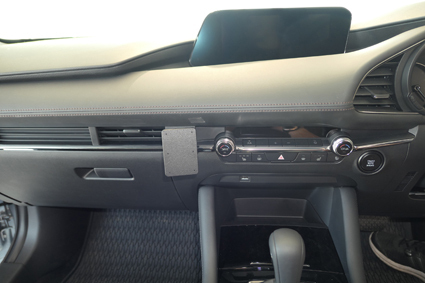

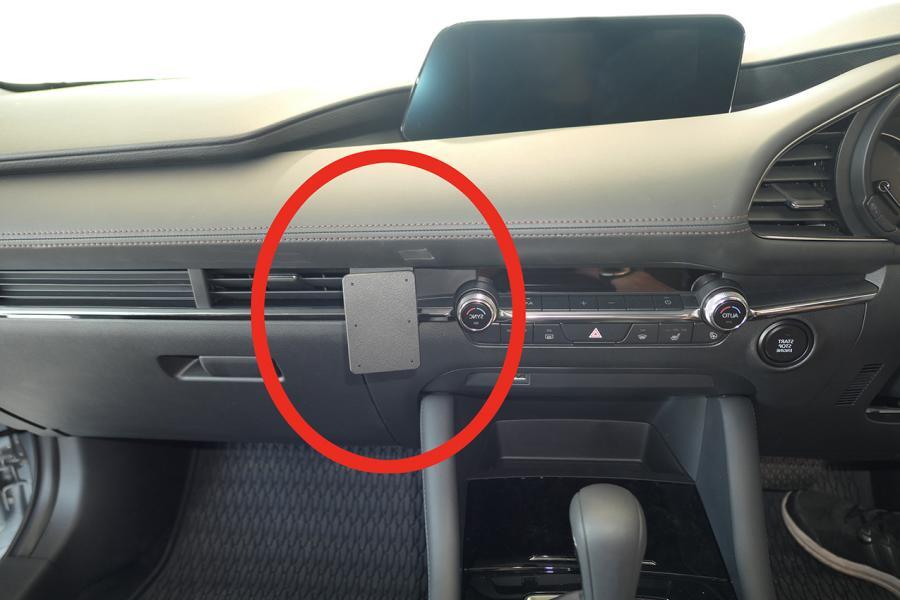

- Centre dash mount #655530, custom designed for the Mazda 3 (2019 to 2027) and CX-30 (2020 to 2027).
- Adjustable non-charging holder #511479, designed to be used with a case.
Adjustable non-charging holder
- Dimensions: width 75 to 89mm, slot 6 to 10mm.
- If you are using a case, measure the width and thickness of the device within the case before ordering.
- Tilt swivel that rotates 360 degrees and tilts 17 degrees in any direction, for the best view and to avoid light reflection.
- Attaches to the mount through the AMPS pattern holes with the screws provided.
No holes, no drilling
- The mount gives you a solid platform without drilling holes or using glue.
- No drilling, no vibration, no popping off.
Easy install
- Fit it yourself. Instructions come with each mount.
- No dismantling of the dashboard is required.
Custom Design in Sweden
- ClicOn mounts are manufactured in Sweden using CNC robotics and custom designed for each vehicle for a solid, secure fit.
- The Mount with an Adjustable Holder
- NO Holes, NO Drilling
- Easy Install
- Custom Design
- Made in Sweden
| This Mount Fits | Mazda 3 Year(s):19-27 Mazda CX-30 Year(s):20-27 |
| SKU | 655530_Kit |
| Barcode # | 7320286555302 |
| Brand | ClicOn |
| Shipping Weight | 0.2500kg |
Below you will find the installation instructions for the Mazda CX-30 Centre Mount & Adjustable Non Charging Holder Kit (SKU:655530_Kit), you can click on the images to open a larger version in a new tab
Step 1

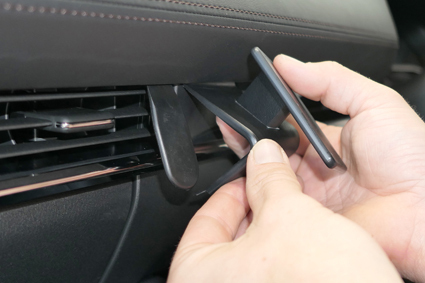

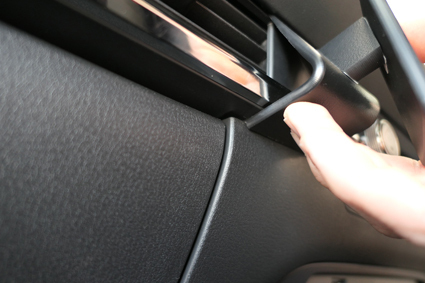

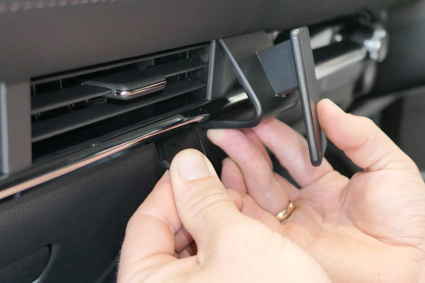

1. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Press the thin edge of the enclosed gap opener into the gap between the frame surrounding the air vent and the dashboard to widen the gap. Peel off the cover of adhesive tape on the ClicOn. Press the angled edge on the upper part of the ClicOn into the gap next to the gap opener. Pull out the gap opener.
Complete Mazda 3 (19-27)/CX-30 (20-27) kit: custom-designed centre dash mount, an adjustable non-charging holder for phones 75-89mm wide and 6-10mm thick, used with a case. No holes, no drilling.
