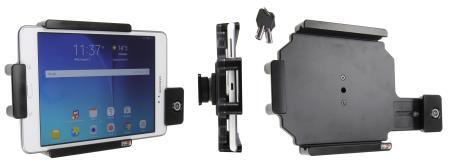

This adjustable tablet holder is made to fit your device. It adjusts to grip the device firmly, with or without a case, and releases with one hand.
It is a non-charging holder, so there is nothing to wire in. A tilt swivel turns the screen from portrait to landscape and angles it away from glare. A built-in key lock secures the device in the holder.
It is the holder on its own. The AMPS pattern plate on the back fits ClicOn dash mounts as well as our pedestal, headrest, bar and forklift mounts, so the same holder can move between a vehicle and a workstation. Consider the weight of the tablet and how firmly the mount holds it before choosing a dash mount.
Please note: Mounting a Tablet onto a ClicOn Dashmount is always done at the customer's risk. Consideration should be given to the position and how firmly the dash mount holds the weight of the Tablet.
| This Holder Fits | Devices between Width 210 to 240 mm & Height 136 to164mm |
| SKU | 539854 |
| Barcode # | 7320285398542 |
| Brand | ClicOn |
| Shipping Weight | 0.4000kg |

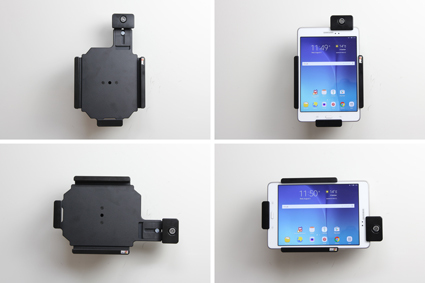

Below you will find the installation instructions for the Key Lock Non Charging Adjustable Holder (SKU:539854), you can click on the images to open a larger version in a new tab
1. Adjust the holder to fit your device: Loosen the screws on the front side of the holder, as well as the screw on the adjustable arm. Pull the flexible sides apart until you reach maximum width, and pull out the adjustable arm. Slide your device sideways into the holder. Press the sides together so the device is firmly in place. Place the locking block onto the flexible arm and press it toward the machine.
2. Press the button to test the locking mechanism; if the switch can not be pressed down, you need to adjust the arm's length.
3. Install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but it can still be adjusted.
4. The holder is in place.
Adjustable tablet holder. Non-charging. 360-degree tilt swivel. Adjustable Width 210 to 240mm & Height 136 to 164mm. AMPS pattern holes. Mount sold separately.
