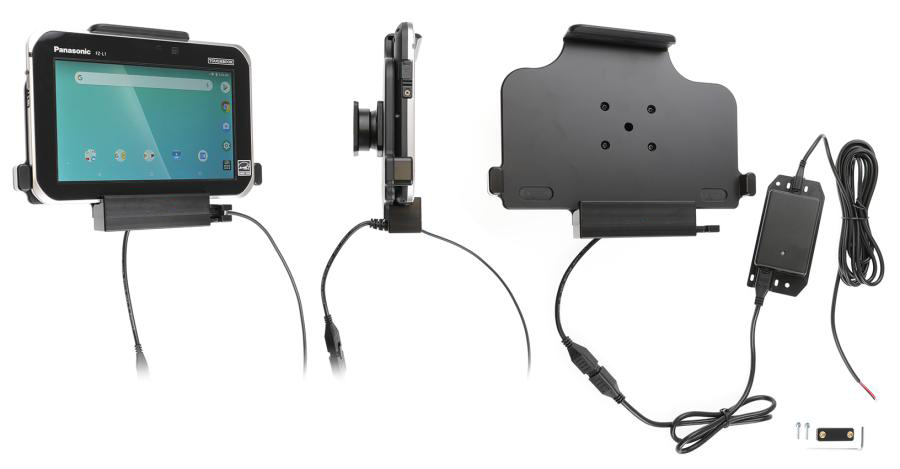

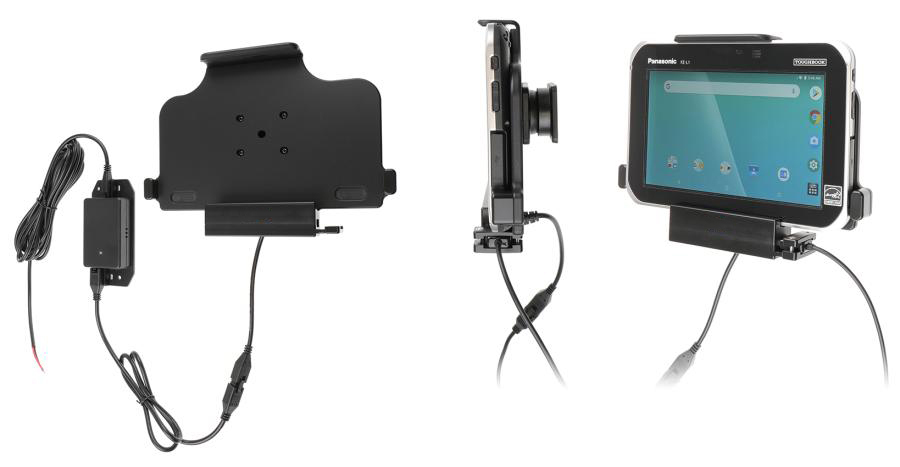

Charging Adjustable Holder - Hard Wire Installation for Panasonic FZ-L1 Yrs:
With USB Host Port
TWO-PART SOLUTION
- The Holder can easily attach to our Pedestal Mounts, Suction Mount, Bar Mounts, and Forklift Mounts or form part of your kit.
FIRM & SECURE FIT
- Customised design to firmly fit your tablet.
HARD WIRE INSTALLATION
- Input voltage: DC/10-24V
- Charging voltage DC/4.6-5.3V
- Output current(Typ) 3.0A
- Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection.
AMPS PATTERN MOUNT HOLES
- The AMPS Pattern Mount Plate on the holder can easily attach to our Pedestal Mounts, Bar Mounts, Forklift Mounts or form part of your solution.
Charging specifications:
- Input voltage: DC/10-30V
- Charging voltage: DC/4.75-5.3V
- Output current(Typ): 2.0A
- Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
- LED charging indicator: Power input indicator(Green), Ovp/Ocp/Output short(Red)
- Operating temperature: 0°C ~ +40°C
- Storage temperature: -20°C ~ +80°C
- RoHS compliant: ROHS
- Two-Part Solution
- Firm & Secure Fit
- Hardwire Install
- AMPS Profile Mounting Holes
This Holder Fits | Panasonic FZ-L1 |
SKU | 713102 |
Barcode # | 7320287131024 |
Brand | ClicOn |
Below you will find the installation instructions for the Charging Adjustable Holder - Hard Wire Installation (SKU:713102), you can click on the images to open a larger version in a new tab
Step 3

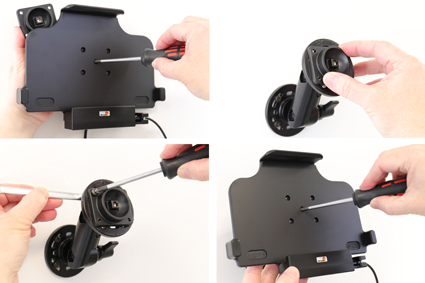

3. Loosen the screw in the centre of the holder to remove the tilt swivel attaching plate on the back. Place the attaching plate in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but it can still be adjusted.
Step 4

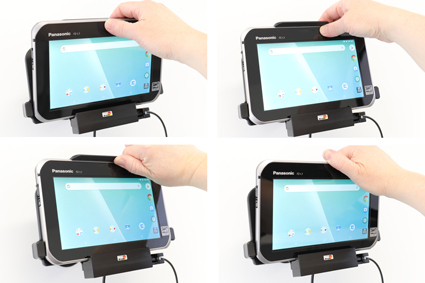

4. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards, so it snaps into place in the holder. To remove the device from the holder: Press upwards on the upper part of the holder; simultaneously, pull the upper part of the device out from the holder and then lift the device up and out from the holder.
