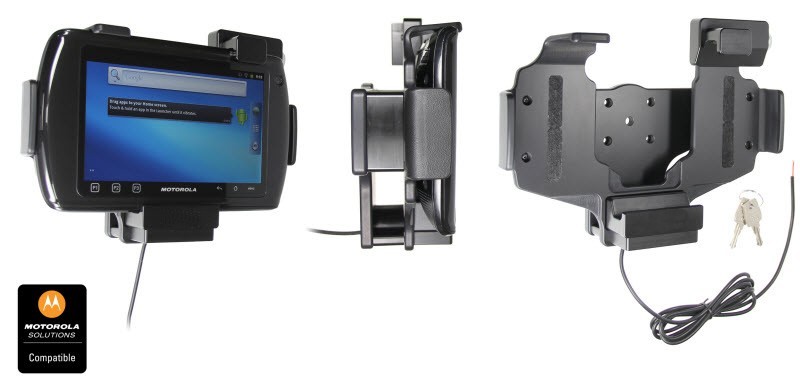

ClicOn Fixed Install Holder- Hard Wired

SKU:249002

This holder is a cradle style mount custom made for a perfect fit with the Motorola ET1 tablet. The tilt swivel mount attached on the back of the holder allows for 15 degrees angling of the holders in any direction and it swivels 360 degrees, easily rotate between landscape and portrait position! The holders comes with the AMPS hole pattern for quick attachment to any flat surface or mounting brackets such as vehicle dashboard mounts, floor mounts, pedestal mounts or handlebar mounts. The holder accommodates the ET1 with or without the Bezel. It also accommodates the credit card module that can be attached on top of the ET1. The holder does not accommodate the hand strap that can be attached on back of the ET1. - See more at: http://www.proclipusa.com/store/products/holder-with-tilt-swivel-511285.aspx#sthash.iKiiBqB1.dpuf

Features & Benefits

Always keep your battery fully charged

  • Works in 12 and 24 volt vehicles
  • Access to all ports
  • Holder can tilt 15 degrees in any direction and swivel 360 degrees
  • Tailored design allows one-handed insertion and removal of device
  • Charging cable for hard wire install attached to holder
  • Comes with AMPS hole pattern for easy attachment to wall, dashboard or vehicle mount
  • Made of high grade ABS plastic
  • Designed and manufactured in Sweden by Brodit AB
  • Motorola Compatible Product

This is a Motorola Compatible Product

Brodit AB designs and manufactures for the Motorola Solutions (IHV) Programme. The IHV program is an effective vehicle for developing and marketing fully integrated third-party products and components that enhance and extend enterprise mobility solutions to meet application specific needs. These accessories have been developed by IHV partners with Motorola support in an effort to ensure that Motorola Solutions and its partners continue to develop the most advanced Mobile Computing solutions available.

About the charging holder

Protect your investment in Mobile Computing with this high quality in-vehicle charging holder! The charging holder is device-specific and designed for in-vehicle use. The slender lightweight profile of the holder allows the user to conveniently mount it within the vehicle optimizing accessibility and operation. This increases user efficiency and reduces the potential for damage to the device. The charging holder provides a safe and secure fit when docking and maintains a reliable connection. Constructed to high quality standards, the design can withstand the most severe road conditions and temperature extremes. The charging holder reduces concern of the device bouncing around the vehicle or running out of battery before the day is done!

This holder works in 12 volt and 24 volt vehicles and comes with a straight power cord for hard wiring to a fixed 12/24 V power source in the vehicle. The design allows for easy insertion and removal of the device. The holder has a key lock block for added security of the device when placed in the holder. The holder can be used in commercial vehicles, personal vehicles, public agency vehicles, emergency vehicles, utility vehicles, etc., and mounts to any flat surface or mounting brackets such as vehicle dashboard mounts, floor mounts, pedestal mounts or handlebar mounts.

This holder works in 12 volt and 24 volt vehicles and comes with a cigarette lighter adapter for direct connection to the 12/24 V power outlet in the vehicle. The design allows for easy insertion and removal of the device. The holder has a key lock block for added security of the device when placed in the holder. The holder can be used in commercial vehicles, personal vehicles, public agency vehicles, emergency vehicles, utility vehicles, etc., and mounts to any flat surface or mounting brackets such as vehicle dashboard mounts, floor mounts, pedestal mounts or handlebar mounts. - See more at: http://www.proclipusa.com/store/products/charging-holder-with-key-lock-and-cigarette-lighter-plug-249007.aspx#sthash.4dNSm8Ql.dpuf

Product specifications

Dimensions 250 x 75 x 55 mm
Weight 0.20 kg / 0.45 lbs
Input Voltage 10-30 V
Output Voltage 5.4 VDC
Output Current 3 A
Indicator/LED LED Amber to Green indicator
Operating Temperature -40 to +50 Degrees Celsius
EMI/RFI CE, E, FCC Part 15, Class B
RoHS Compliant Yes
Electrical Test ISO 7637 and SAE J1455
Life Cycle Test Functional after 55,000 inserts and removals
Vibration Test Sine on Random 0.04g2/Hz, (20Hz to 2KHz) 4g sine tones 1 hour duration per axis for 3 axis tested, per MIL STD 810F, Method 514, Procedure I. Reference MIL STD 810F

Disclaimer

Motorola makes no express or implied representation or warranty with respect to: (i) any of the Products referenced herein; (ii) the information provided herein (including without limitation the key findings and test results regarding the Products and the functionality or interoperability thereof) (?Information?) or any solution, combination or system that may be created with the use thereof. The user of the Products and the Information is using them at its own risk. Motorola disclaims all other express and implied warranties including, without limitation, the implied warranties of non-infringement, merchantability and fitness for a particular purpose. The Program is offered ?as is? with all faults and does not constitute professional, technical, legal or other advice to the user.

Fits: Motorola IHV MC9500


SKU 249002
Brand ClicOn

Be The First To Review This Product!

Help other Neovox Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Below you will find the instalation instructions for the Fixed Install Holder- Hard Wired (SKU:249002), you can click on the image to open a larger version in a new tab

$242.00
