ClicOn Centre Mount

With Pre-Drilled AMPS Pattern Holes

SKU:654985

This Dashmount has been custom designed to fit your vehicle's dashboard without damaging your interior. Designed for mounting ClicOn holders. ONE Part of a TWO Part Solution. Installation instructions provided.

Please read all of the instructions and look at the pictures before attaching the ClicOn. This ClicOn consists of two parts:

Part 1: Attaching part (the smallest part)

Part 2: ClicOn face plate

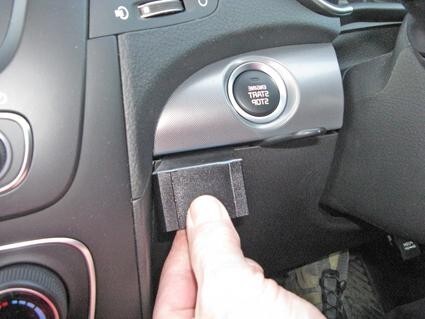

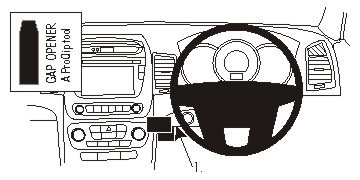

1. Press the thin end of the enclosed gap opener into the gap under the Start button, to widen the gap. Use the enclosed alcohol pad to clean the area where the ClicOn is to be installed. Peel off the adhesive tape cover on Part 1. Press the angled edge on Part 1 into the gap next to the gap opener.

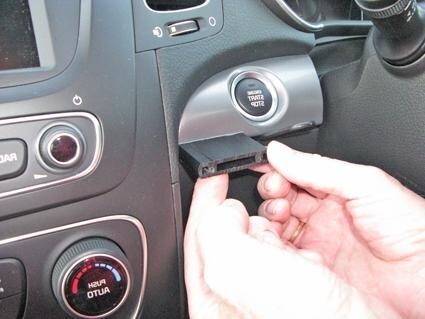

2. Press Part 1 upward/forward, so the angled edge goes all the way into the gap and hooks behind the control panel and the adhesive tape attaches. Pull out the gap opener.

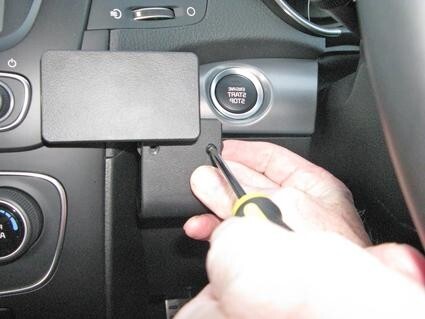

3. Open up the predrilled holes in Part 2 with a screwdriver. Peel off the adhesive tape cover on Part 2. Place Part 2 onto Part 1 so the holes match and the face plate is on the right side. Attach Part 2 onto Part 1 by using the enclosed screws. Whil screwing, keep the ClicOn in place using your index finger and press it forward/upward with your thumb to ensure the screw goes all the way in and the ClicOn attaches correctly.

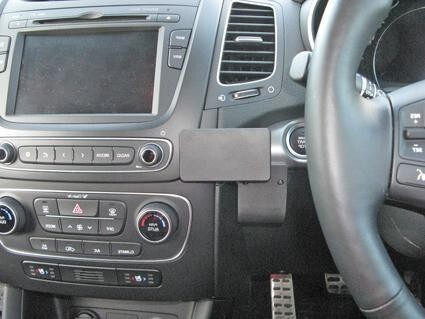

4. The ClicOn is in place.

Fits: Kia Sorento Year(s):13-14


SKU 654985
Barcode # 7320286549851
Brand ClicOn

Be The First To Review This Product!

Help other Neovox Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

$48.99
