ClicOn Angled Mount

With Pre-Drilled AMPS Pattern Holes

SKU:653993

This Dashmount has been custom designed to fit your vehicle's dashboard without damaging your interior. Designed for mounting ClicOn holders. ONE Part of a TWO Part Solution. Installation instructions provided.

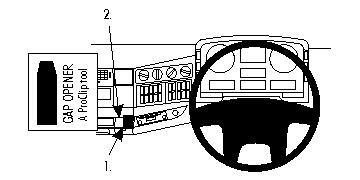

Attention! Read all instructions and look at the pictures before attaching the ClicOn.

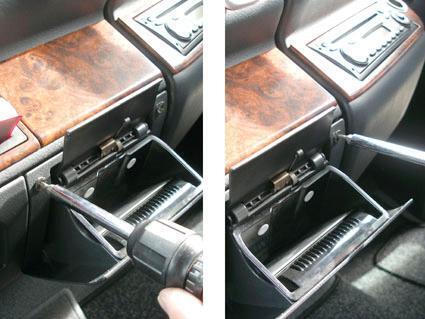

1. Open the ashtray. Loosen the screws by the upper edge of the ashtray. Open the glove compartment.

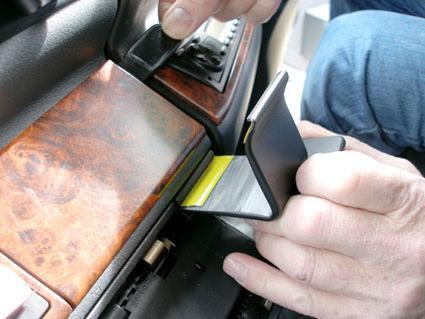

2. Press the thin end of the enclosed gap opener into the gap between the panel and the dashboard, to widen the gap. Peel off the adhesive tape covers on the ClicOn. Press the curved edge on the lower part of the ClicOn into the gap between the frame surrounding the glove compartment and the dashboard.

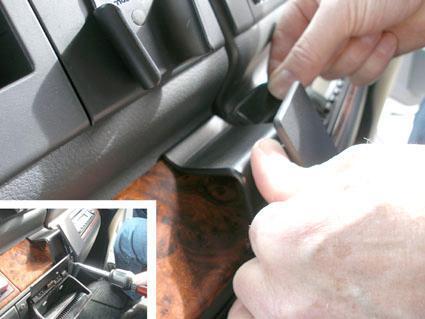

3. Flip the ClicOn upward/forward so the curved lower edge hooks behind the frame surrounding the glove compartment. Press/hook the angled edge on the upper part of the ClicOn into the gap between the panel and the dashboard. Pull out the gap opener. Retighten the screws by the ashtray. Close the glove compartment.

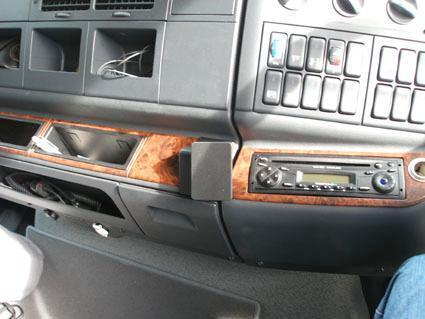

4. The ClicOn is in place.

This Mount Fits Man TG-Series Year(s):00-14
SKU 653993
Barcode # 7320286539937
Brand ClicOn

Be The First To Review This Product!

Help other Neovox Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

$48.99
