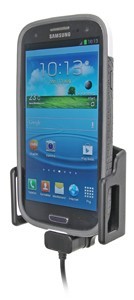

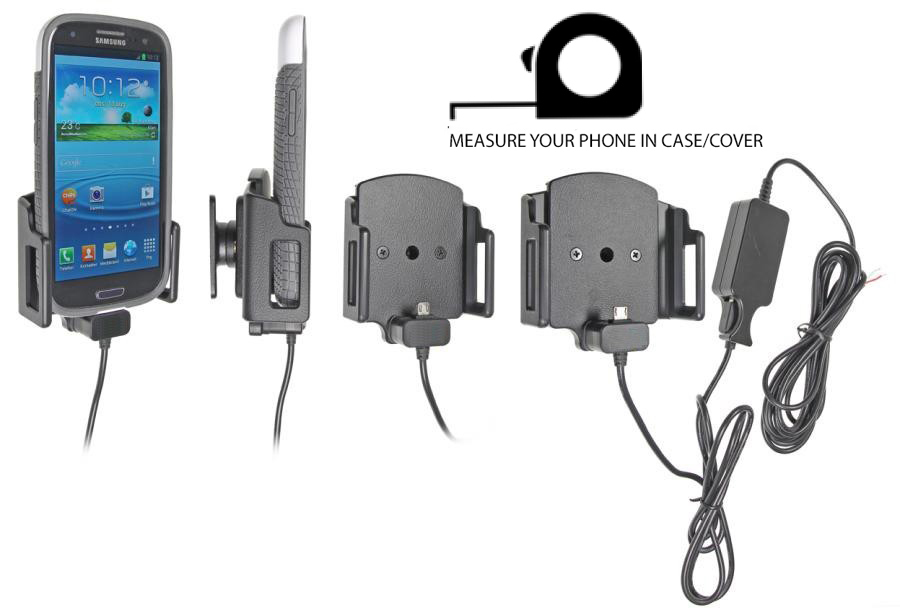

This adjustable hardwired charging car phone holder suits phones 62 to 77mm wide and 12 to 16mm thick. Measure the width and thickness with the case on before ordering.
It is hardwired into the vehicle's power, which keeps the 12V socket free and the cabling out of sight. A professional installer is recommended. A tilt swivel turns the screen from portrait to landscape and angles it away from glare.
It is the holder on its own. It screws onto a ClicOn dash mount with the screws provided, so pick the mount made for your vehicle to complete the set-up. When you change phones later, you only need a new holder; the mount stays in the car.
Please note: This Holder connects directly to the vehicle's power. A professional installer is recommended.

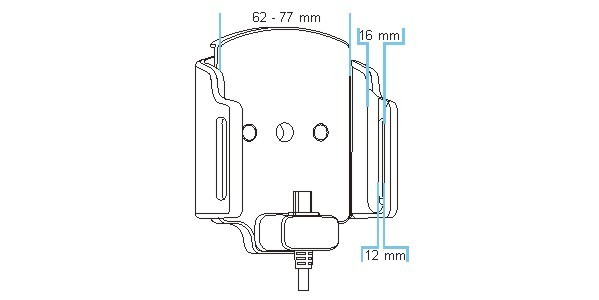

| This Holder Fits | Width 62-77 mm, Slot 12 -16 mm |
| SKU | 527622 |
| Barcode # | 7320285276222 |
| Brand | ClicOn |
Below you will find the installation instructions for the Hard Wired Charging Adjustable Holder (SKU:527622), you can click on the images to open a larger version in a new tab

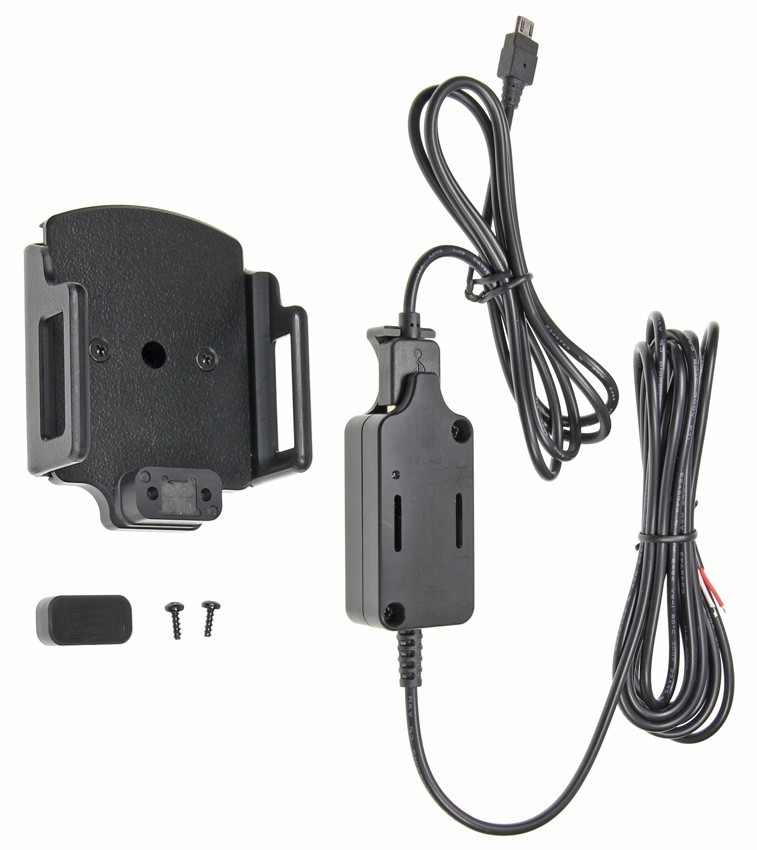

1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis. 2. Connect the Red wire to a 12/24 Volt power supply in the vehicle controlled by the ignition switch.

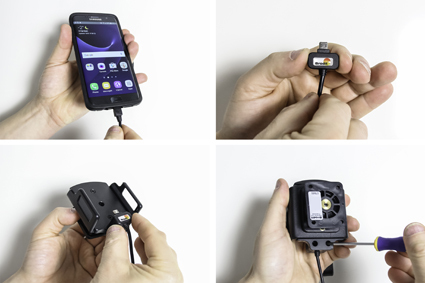

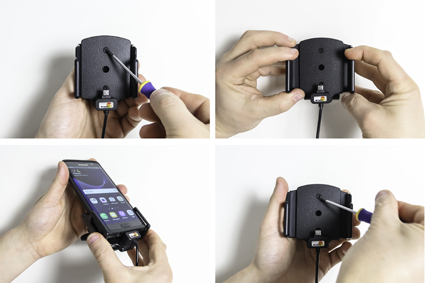

How to mount the holder: 1. Use your phone to determine in what direction the charging connector should be placed in the holder. Place the charging connector into the locking block. Place the locking block in its position on the front of the holder. Turn the holder around and screw the locking block into place using the enclosed screws. 2. To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holder can be adjusted. Place the device in the holder and press the sides together, so the device is firmly in place. Remove the device carefully. Tighten the screws on the front side of the holder.

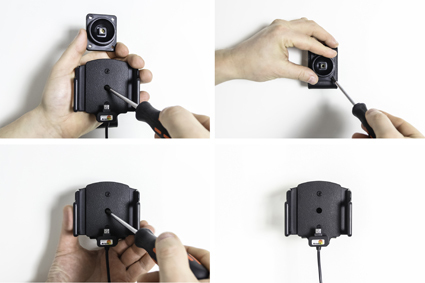

3. To install the holder: Loosen the screw in the centre of the holder, removing the tilt swivel attaching plate on the back. Screw the attaching plate onto the desired position with the enclosed screws. Place the holder over the attached container. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw firmly at first, then loosen it a bit so the holder is firmly in place but still can be adjusted.
3. To install the holder: Loosen the screw in the centre of the holder, removing the tilt swivel attaching plate on the back. Screw the attaching plate onto the desired position with the enclosed screws. Place the holder over the attached container. Screw a few turns on the screw, so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw firm at first, then loosen it a bit, so the holder is firmly in place but still can be adjusted.

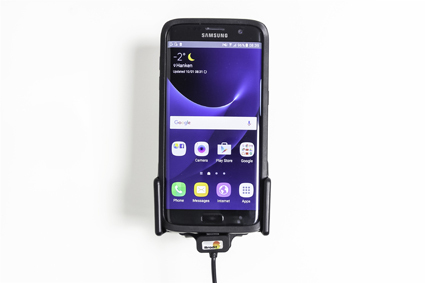

4. The holder is in place.
Adjustable hardwired charging car phone holder. Fits 62-77mm wide, 12-16mm thick. Hardwire install. 360-degree tilt swivel. Only for Devices with Micro USB. AMPS pattern holes. Mount sold separately.
