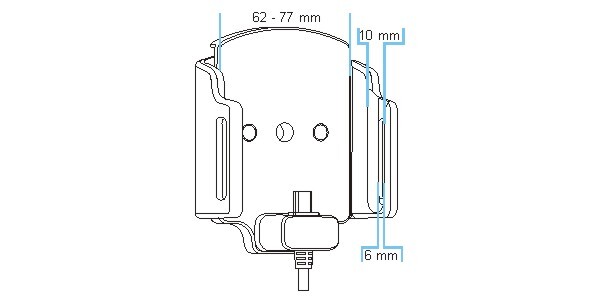

This adjustable charging car phone holder suits phones 62 to 77mm wide and 6 to 10mm thick. Measure the width and thickness with the case on before ordering.
It charges through the included cig-plug charger, so the device is topped up from the vehicle's 12V socket. A tilt swivel turns the screen from portrait to landscape and angles it away from glare.
It is the holder on its own. It screws onto a ClicOn dash mount with the screws provided, so pick the mount made for your vehicle to complete the set-up. When you change phones later, you only need a new holder; the mount stays in the car.
Please note: If your car has a USB socket, you can disconnect the cig-plug from the cable to connect directly to the USB connector in your vehicle to Sync audio files from your device into your head unit. The car stereo must support this feature. Test that your stereo is compatible by connecting your device to the stereo with the USB/charging cable that comes with your device.
| This Holder Fits | Width 62-77 mm, Slot 6 -10mm |
| SKU | 521620 |
| Barcode # | 7320285216204 |
| Brand | ClicOn |
| Shipping Weight | 0.1250kg |
Below you will find the installation instructions for the USB Cig-plug Charging Adjustable Holder - Medium (SKU:521620), you can click on the images to open a larger version in a new tab
1. Use your phone to determine in what direction the charging connector should be placed in the holder. Place the charging connector into the locking block. Place the locking block in its position on the front of the holder. Turn the holder around and screw the locking block into place using the enclosed screws.
2. To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holder can be adjusted. Place the device in the holder and press the sides together, so the device is firmly in place. Remove the device carefully. Tighten the screws on the front side of the holder.
3. To install the holder: Loosen the screw in the centre of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching container in the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate, so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed; at the same time, tighten the screw, so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit, so the holder is firmly in place, but still can be adjusted.
4. The holder is in place.
Adjustable charging car phone holder. Fits 62-77mm wide, 6-10mm thick. Cig-plug charger included. 360-degree tilt swivel. Only for Devices with Micro USB. AMPS pattern holes. Mount sold separately.
