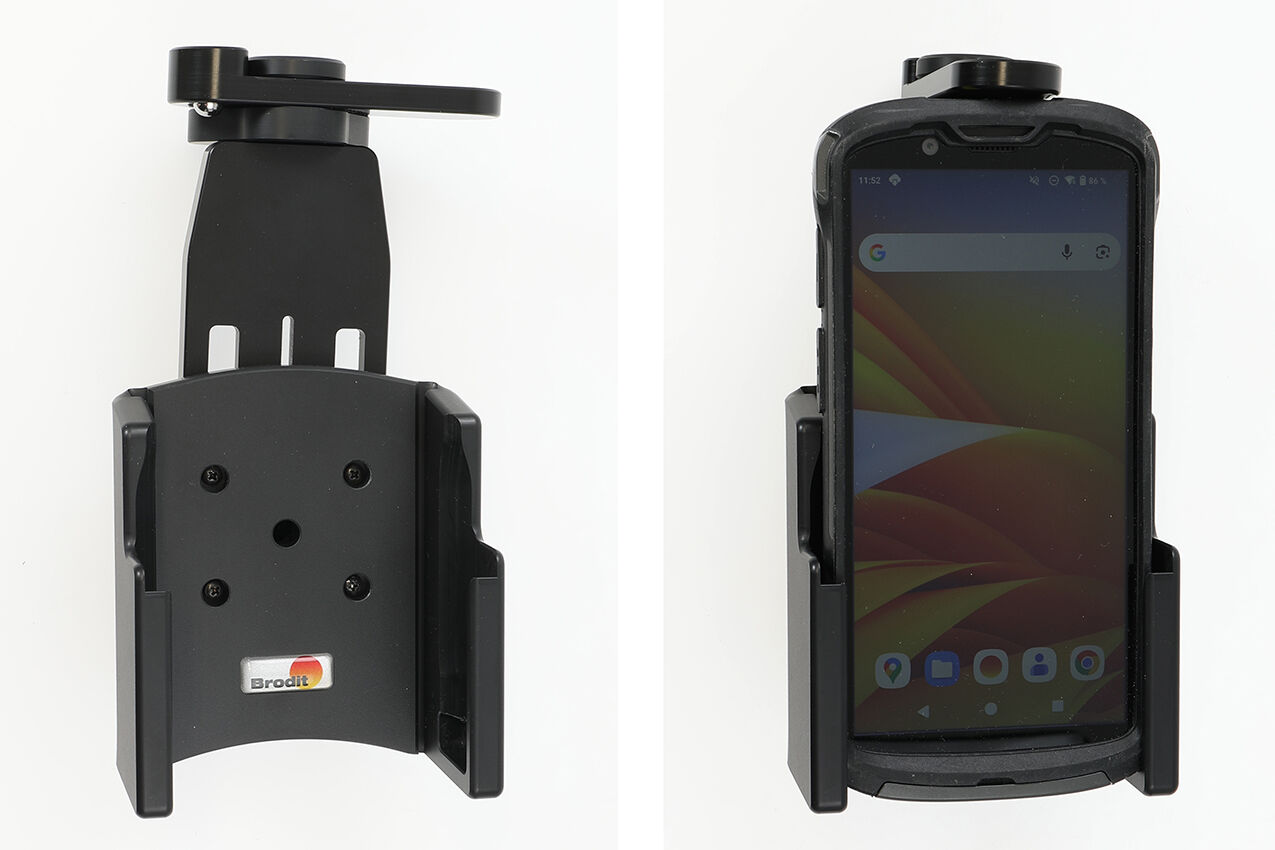

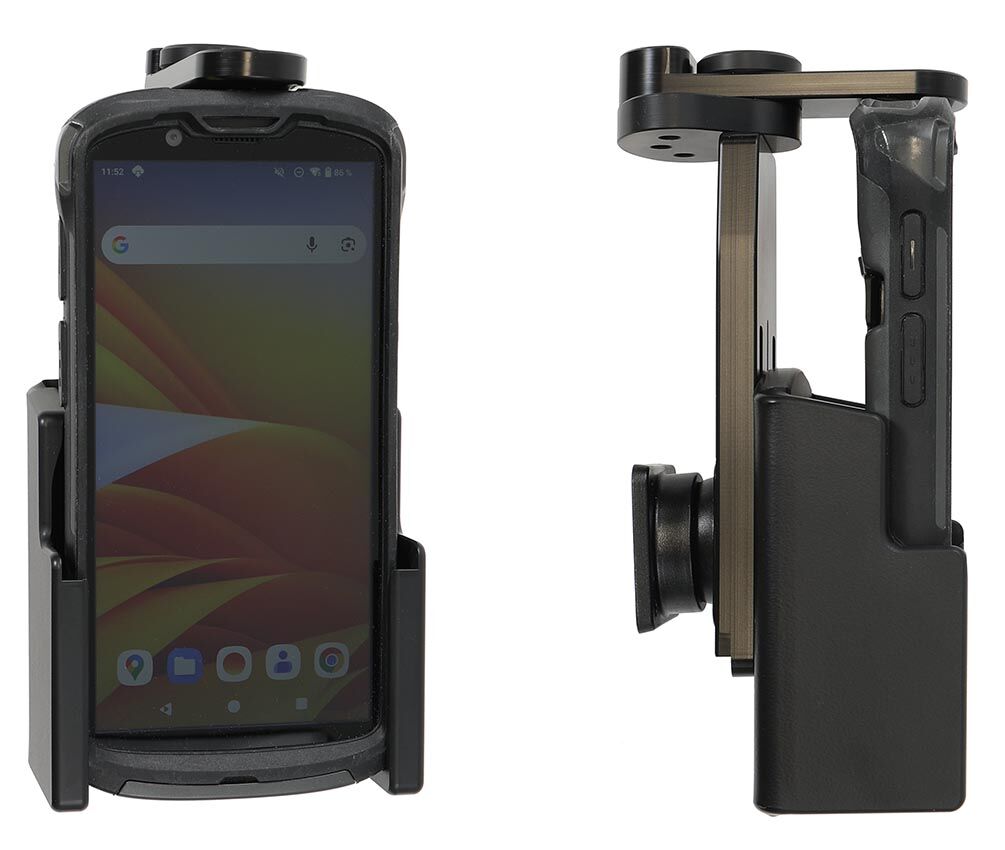

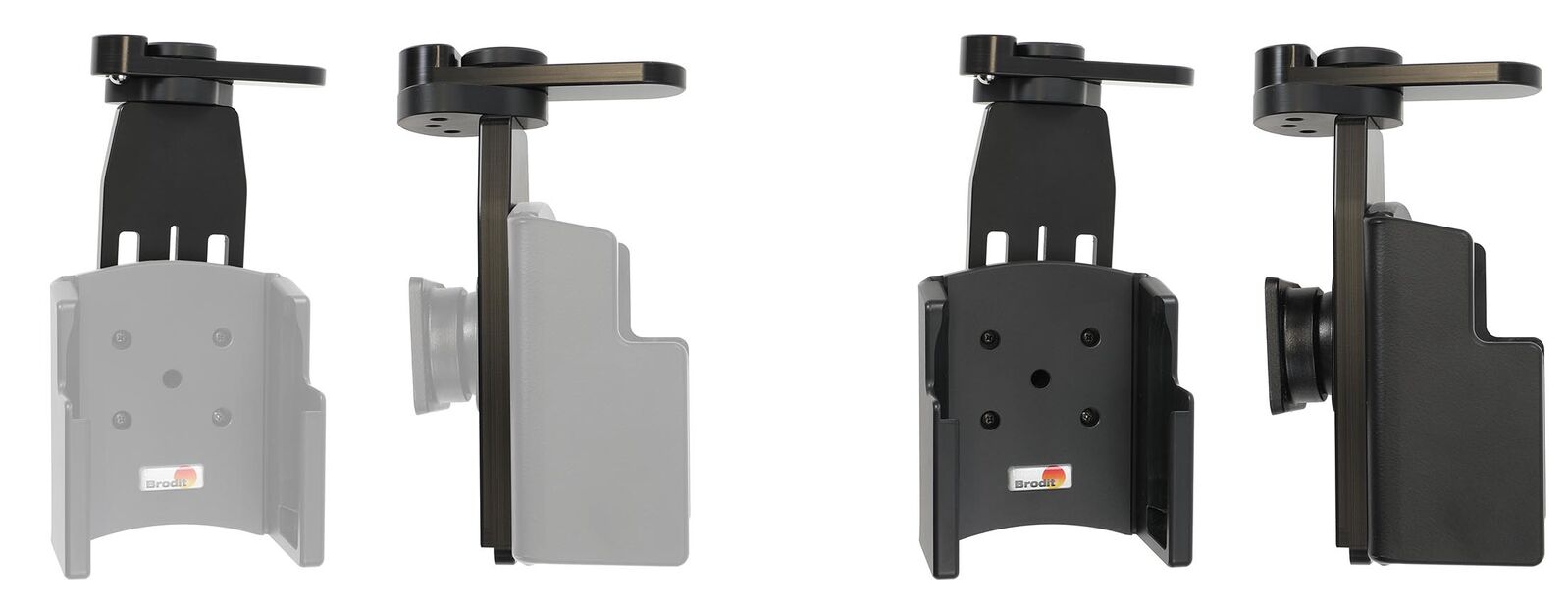

Swiveling top support with retention-lock
Fits Brodit holders with tilt swivel plate 42x50mm
This holder is made for the Retention-lock for Zebra TC701 Retention-lock for Honeywell CT70. It is moulded to the shape of the device, so it docks and releases with one hand and stays firmly in place on rough roads.
It is a non-charging holder, so there is nothing to wire in. A tilt swivel turns the screen from portrait to landscape and angles it away from glare.
It is the holder on its own. The AMPS pattern plate on the back fits our pedestal, forklift, bar, headrest and heavy duty suction mounts, as well as ClicOn dash mounts, so it suits vehicles, forklifts and fixed workstations alike.
Solutions accessory
- Retension-lock firmly & securely holds the device in the holder.
Module upgrade part
- Designed to upgrade the Zebra TC701 holders.
- Designed to upgrade the Honeywell CT70 holders.
Ready to go
- Complete with mounting strews.
- Solutions Accessory
- Module Upgrade Part
- Ready To Go
| This Holder Fits |
Retention-lock for Zebra TC701 Retention-lock for Honeywell CT70
|
| SKU | 217259 |
| Barcode # | 7320282172596 |
| Brand | ClicOn |
| Shipping Weight | 0.0700kg |
Below you will find the installation instructions for the Swiveling top support with retention-lock (SKU:217259), you can click on the images to open a larger version in a new tab
Step 1

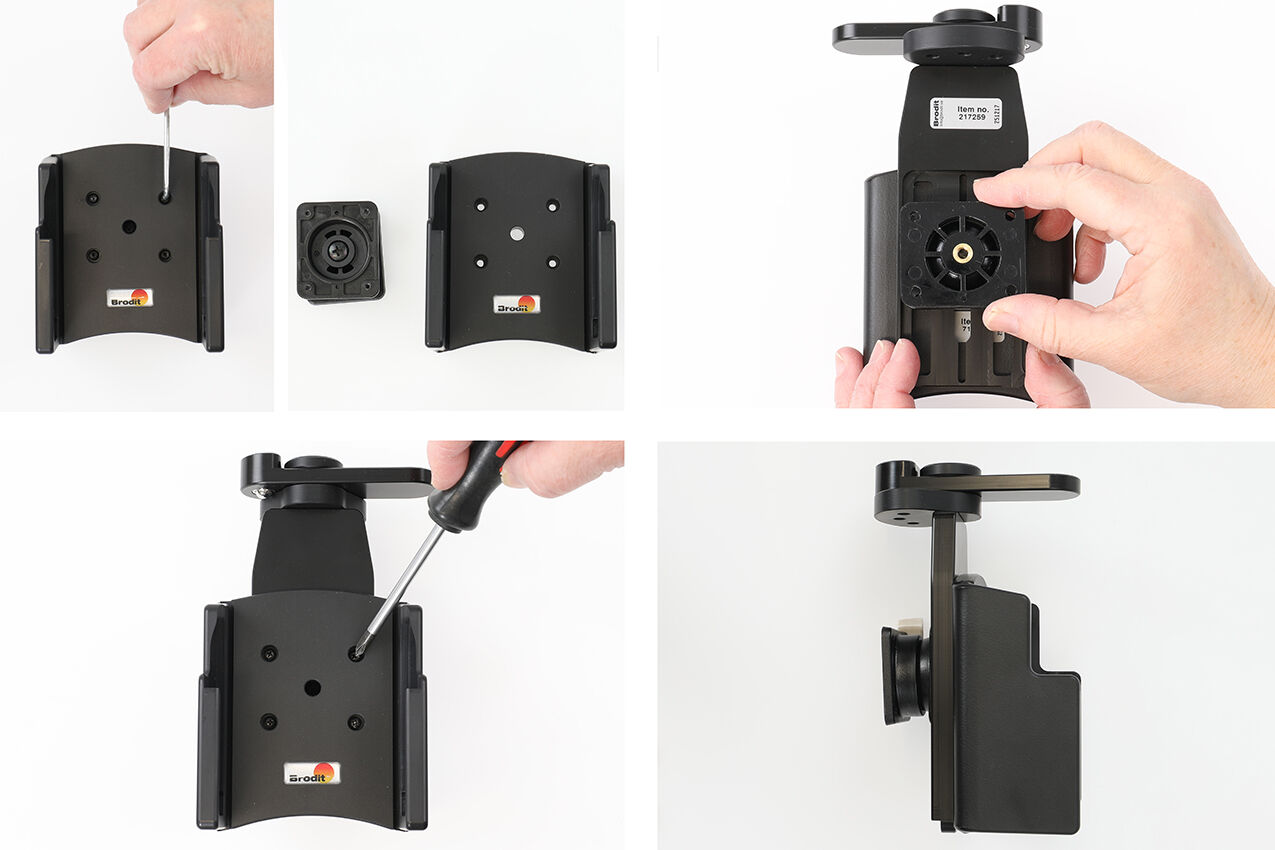

1. Remove the tilt swivel from the back of the holder by removing the screws in the holder front. Place the tilt swivel in the groove on the back side of the top support. Place the top support with the tilt swivel onto the back of the holder. Attach the parts together using the enclosed screws. Do not tighten the screws yet, only attach them so the top support is held in place but still can be adjusted in height.
Step 2

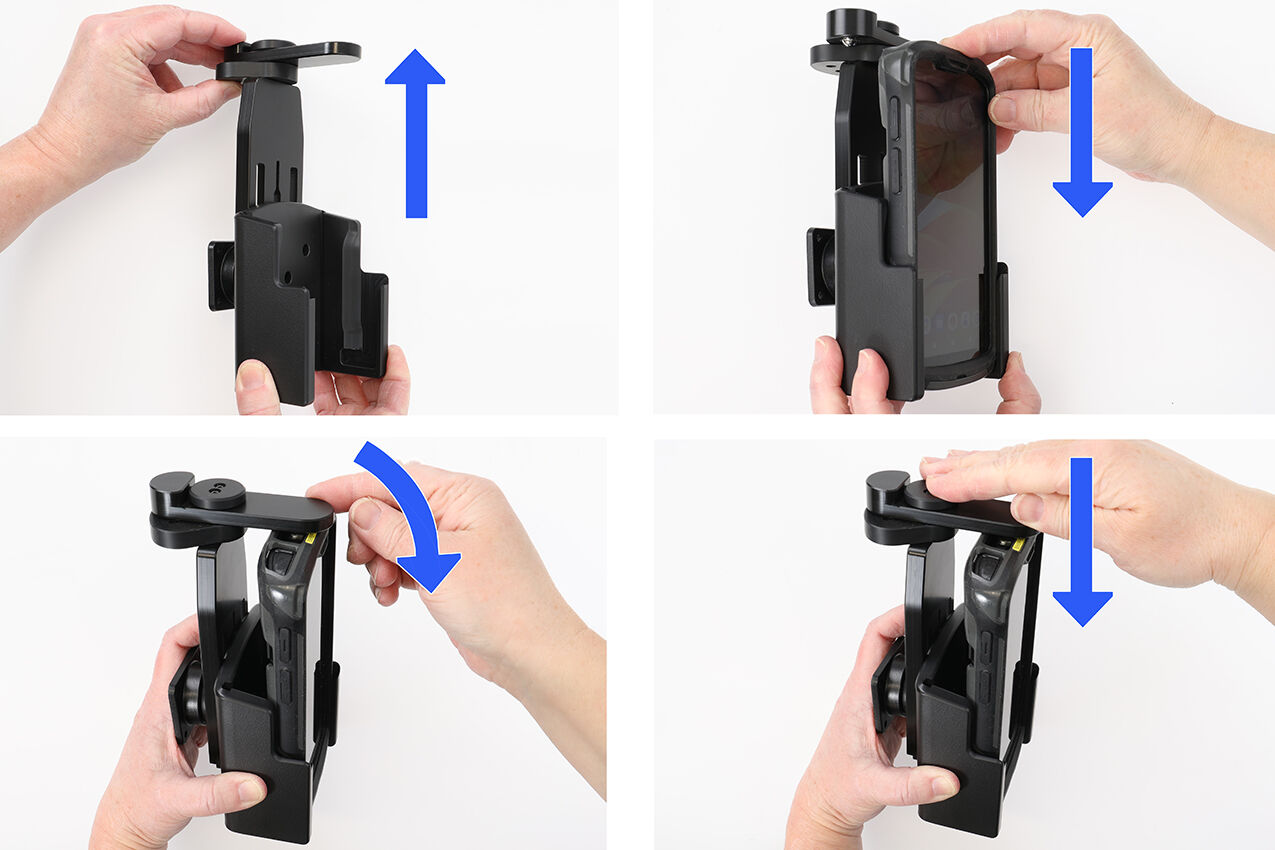

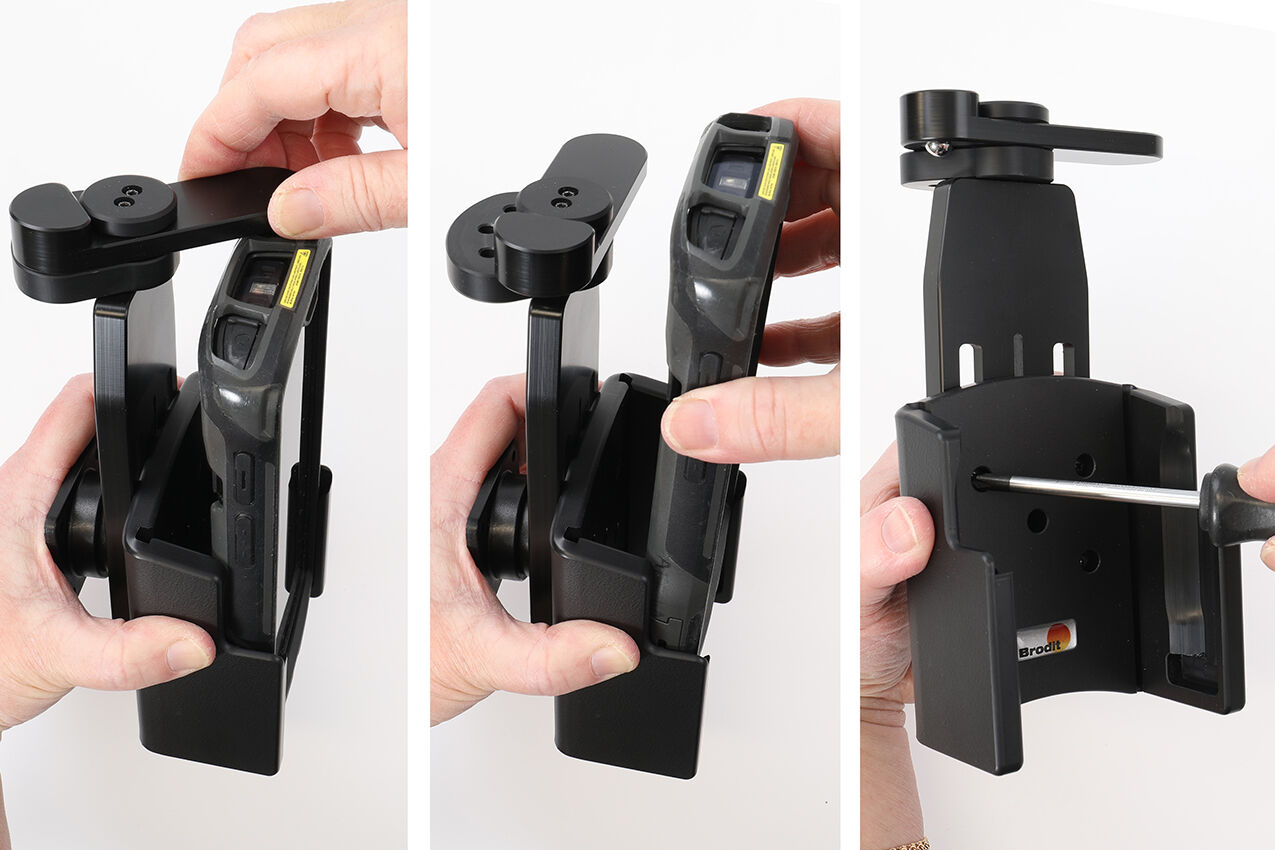

2. Place the device in the holder. Turn the swiveling top sideways so it is positioned over the device. Adjust the top support downward so it is touching the device. Keep the top support in that exact position. Turn the swiveling top to the side and take the device out from the holder without altering the position of the top support. Tighten the screws in the holder so the top support is firmly in place in the chosen position.
Holder for the Retention-lock for Zebra TC701 Retention-lock for Honeywell CT70. Non-charging. 360-degree tilt swivel. AMPS pattern holes. Mount sold separately.
