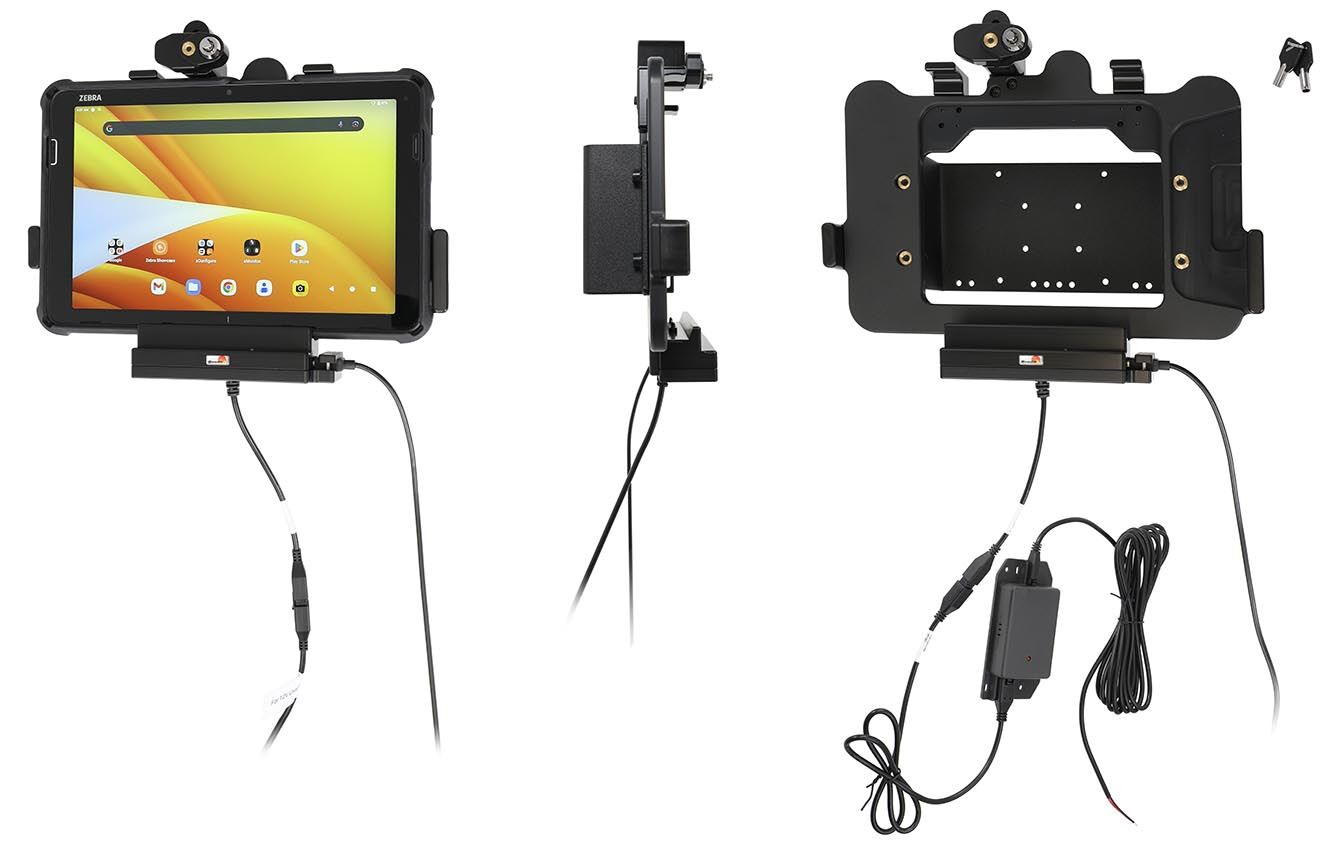

Key Lock Hard Wired Charging Module Holder
USB Host - Device with a Rugged Boot & Expansion Pack
THE HOLDER
- Attach to our range of Bar, Forklift, Pedestal or Heavy Duty Suction Mounts to hold your device firmly & securely.
- Easy one-hand docking and removal.
- Comms ports, camera, and scanner buttons are accessible while docked.
FIRM & SECURE FIT
- Customised design to firmly fit your tablet with the Rugged Boot & Expansion Pack
KEY LOCK MODULE
- The Key Lock is supplied with two keys.
- Suitable for retail stores, exhibitions and where security is essential.
CHARGING USB HOST MODULE
- The power is supplied via the 30 Pogo pin terminal.
- Input: DC Power 12 - 24 - 48 Volts.
- Output: 3AMP 12V.
- The charging module also supports USB A Host.
UPGRADEABLE
- The Cradle can be upgraded using the add-on Modules.
STEEL MOUNTING PLATE
- A steel mounting plate for a durable and reliable installation. Great for forklifts and where the environment is rough and tough.
AMPS & VESA MOUNTING PROFILES
- AMPS (38 x 30 mm) and VESA mounting holes for a quick and convenient attachment to flat surfaces or our Forklift and Pedestal mounts.
KIT INCLUDES
- M4 Fastener Pack: 10, 14 & 20 mm Low Profile 2.5 mm Hex, M4 Lock Nuts, Flat & Lock Washers.
- 2.5mm Allen Key Wrench.
- Fits 10 Inch Device
- Firm & Secure Fit
- Key Lock Module
- Charging USB Host Module
- Upgradeable
- Steel Mounting Plate
- AMPS & VESA Pattern Mounting Profiles
| This Holder Fits | Zebra ET401 10" with a Rugged Boot |
| SKU | 736455 |
| Barcode # | 7320287364552 |
| Brand | ClicOn |

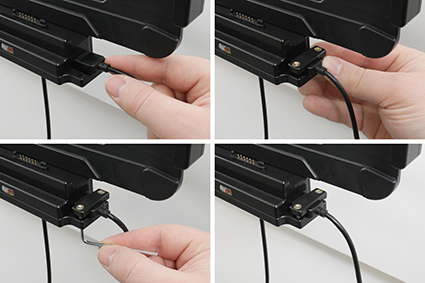

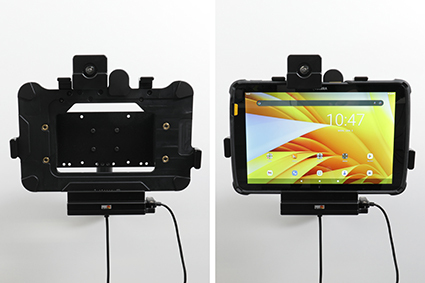

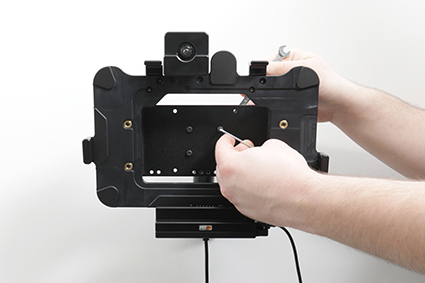

Below you will find the installation instructions for the Key Lock Hard Wired Charging Module Holder (SKU:736455), you can click on the images to open a larger version in a new tab
Step 3

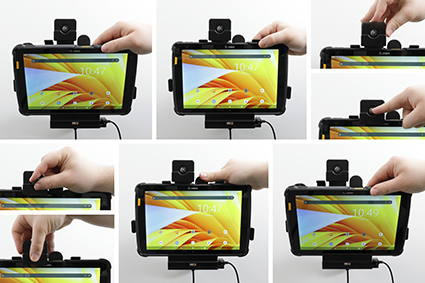

3. To place the device in the holder: Place the lower part of the device in the holder. Flip/press the upper part of the device forward, so it snaps into place in the holder. Press the locking block downward. Press the button to lock. To remove the device from the holder: Use the enclosed key to open the lock. Slide the lock upward. Press upwards on the upper part of the holder, and at the same time, pull the upper part of the device out from the holder and then lift the device up and out from the holder.
